ZCUV-DI ZCLASER UV 3W 5W Laser Marking Machine
- 产品描述
- parameter
-
- Brand: ZCLASER
- Commodity name: ZCUV-DI ZCLASER UV 3W 5W Laser Marking Machine

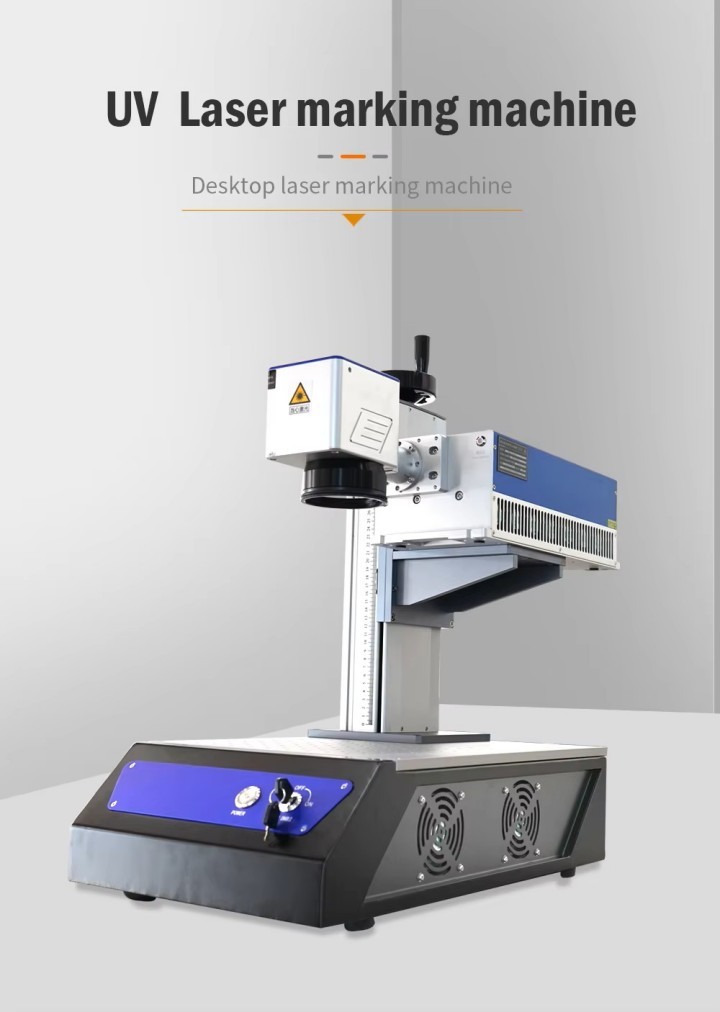

Mini UV laser marking machine with 355nm wavelength, light and easy to use, only 35kg, can mark any material with fine effect.
Features
It is especially suitable for the high-end market of fine processing. The surface of packaging bottles for cosmetics,
medicines, jewelry and other polymer materials is marked with fine effect, the marking is clean, better than inkcoding and no pollution. Flexible PCD board marking, dicing, silicon wafer micro-hole, blind hole processing. Amongthem, 80% of the data lines on the market , the adapter marking is from the UV laser marking.Product Details

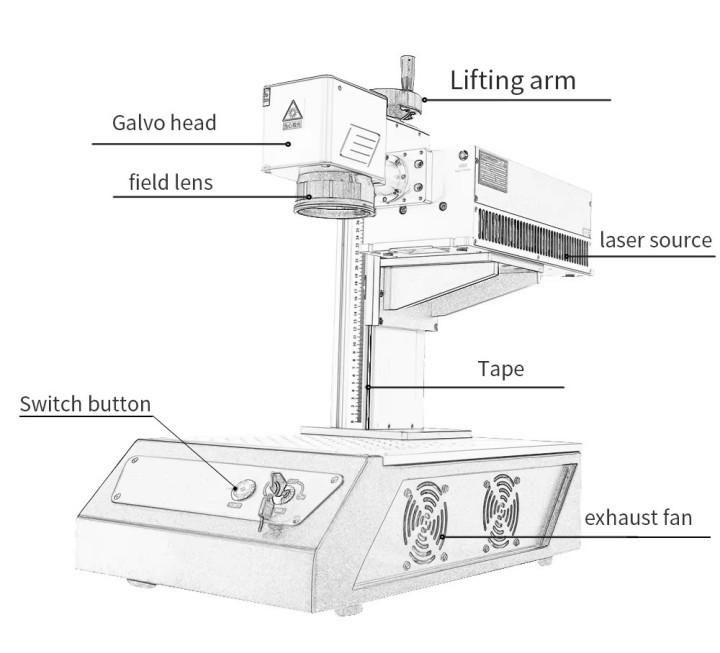

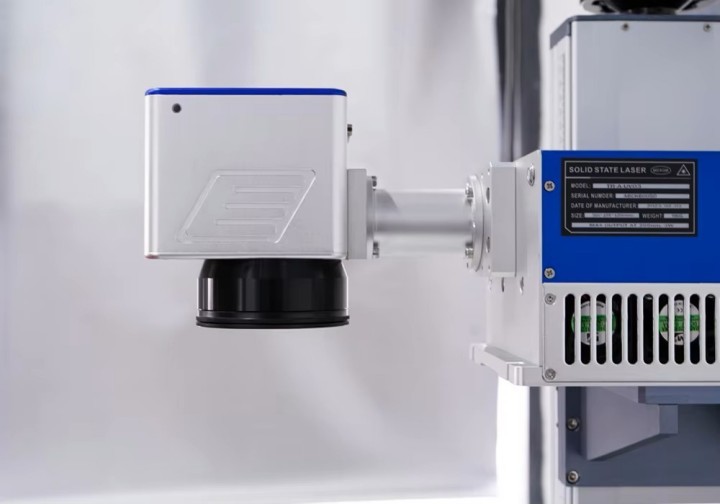

Galvo headHigh quality laser scanning system makes the marking speed up to 7000mm/s

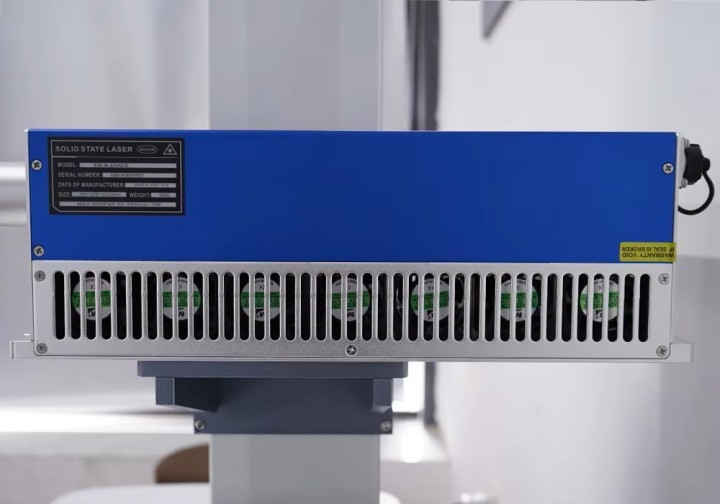

UV Laser sourceFiber laser device adopts Technology China top quality,100000 hours lifetime

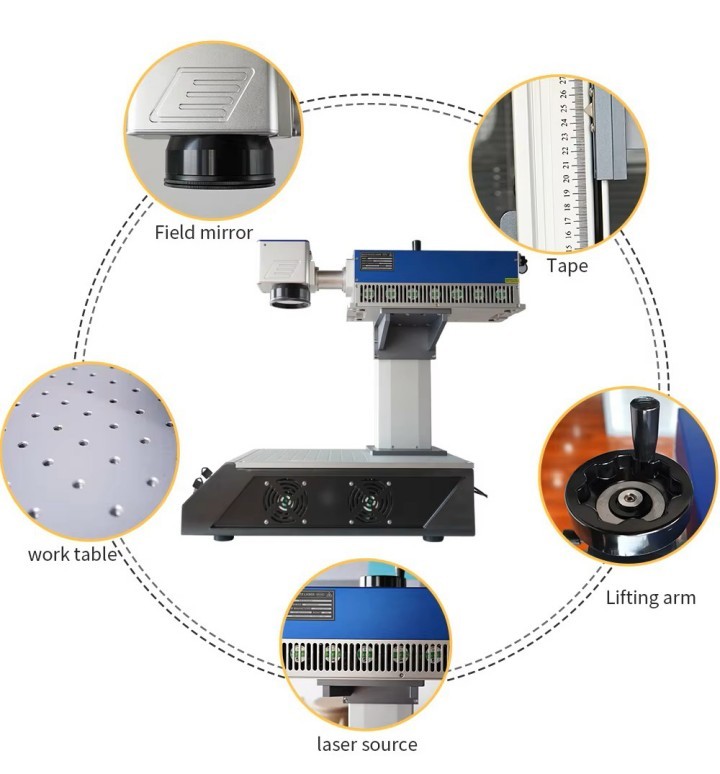

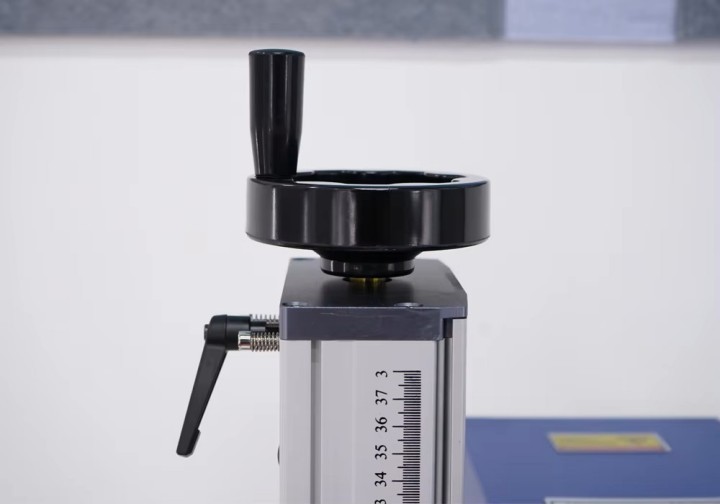

Lift arm
Control the height of the lens and accurately fix the marking position

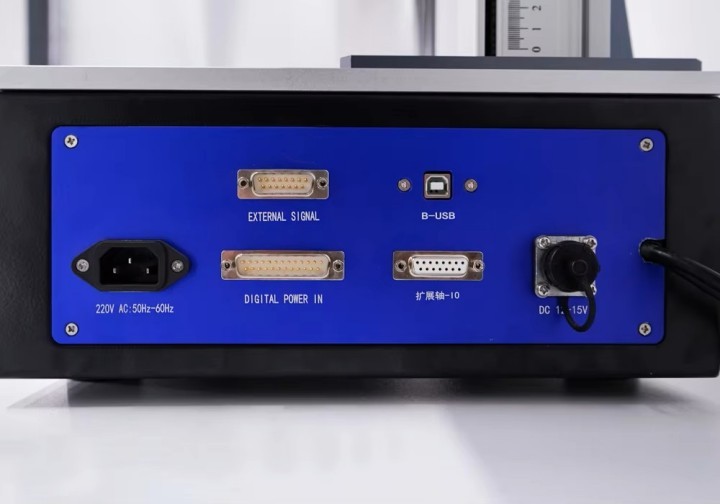

Power plug
Product Parameters
Laser System ZC-UV3W/5W Laser Source 355nm UV
Nominal Laser Power 3/5W
Beam Quality M² M2<1.3
Beam Diameter 0.6±0.1mm
Pulse Width <20ns@30KHz
Frequency 20~120KHz
Peak Power 7.4KW
Long-term Power Instability 5%
Cooling System Air Cooled
Aiming Diode Intergrated Visible Red Laser Diode, λ=635nm, 10-50mW
General Information Machine Net Weight 20KG
Machine Gross Weight 55KG
Packing Dimention 820*780*390mm
Electrical Connection Values 115V-230VAC 50-60Hz
Operating Temperature +10 to +35 °C (46 to 95°F)
Humidity < 90% non-condensing
Scan Head F-Theta Lens FL 160 (Standard)
Marking Area 100*100mm
Spot Size in Focus 0.15mm
Min. Line Width 0.01mm
Min. Character 0.15mm
Working Distance (to Lens) 112±1mm
CCD Function Optional
Scan Speed Up to 4000 mm/s (Optional: 8000mm/s)
Communication Interface PC Interface USB 2.0
Digtial Output Rotary axis and pedal are available
Marking Software EZCAD
Marking Software Min. Hardware Requirements 1GHz or equal, USB 2.0
Operating System Windows XP, Win 7, Win 8, Win 10
Min. Memory RAM as recommended by OS, 100MB on HDD for Marking Software
Display SVGA Color
Text Fonts True-Type ( filled/unfilled), Single-Line Fonts
Orientation User Defined
Letter Spacing User Defined
Arc Text Scalable and adjustable
Graphic Elements Line, Rectangle, Circle, Ellipse (filled/ unfilled)
Formats Vector: *.plt, *.dxf, *.ai, *.svg; BMP: *.bmp, *.jpg, *.jpeg, *.gif, *.png;
Options Wide Range of Laser Workstations / Work Area Enclosures
Rotary-Axis
Vacuum System
Application Scenarios
-
-
参数列表
- Brand： ZC CNC LASER
- Model： CNC
- Price： 800-1400$
- Delivery period： 30 days
- Warranty period： Core components:2 years Other components:1 year
-
Keywords:
ZCUV-DI
Uv Laser
Uv Laser Marking Machine
uv Lase Marking Machine For Glass
Classification:
Product Description
Features
It is especially suitable for the high-end market of fine processing. The surface of packaging bottles for cosmetics,
Product Details
Lift arm
Control the height of the lens and accurately fix the marking position
Power plug
Product Parameters
| Laser System | ZC-UV3W/5W |
| Laser Source | 355nm UV |
| Nominal Laser Power | 3/5W |
| Beam Quality M² | M2<1.3 |
| Beam Diameter | 0.6±0.1mm |
| Pulse Width | <20ns@30KHz |
| Frequency | 20~120KHz |
| Peak Power | 7.4KW |
| Long-term Power Instability | 5% |
| Cooling System | Air Cooled |
| Aiming Diode | Intergrated Visible Red Laser Diode, λ=635nm, 10-50mW |
| General Information | |
| Machine Net Weight | 20KG |
| Machine Gross Weight | 55KG |
| Packing Dimention | 820*780*390mm |
| Electrical Connection Values | 115V-230VAC 50-60Hz |
| Operating Temperature | +10 to +35 °C (46 to 95°F) |
| Humidity | < 90% non-condensing |
| Scan Head | |
| F-Theta Lens | FL 160 (Standard) |
| Marking Area | 100*100mm |
| Spot Size in Focus | 0.15mm |
| Min. Line Width | 0.01mm |
| Min. Character | 0.15mm |
| Working Distance (to Lens) | 112±1mm |
| CCD Function | Optional |
| Scan Speed | Up to 4000 mm/s (Optional: 8000mm/s) |
| Communication Interface | |
| PC Interface | USB 2.0 |
| Digtial Output | Rotary axis and pedal are available |
| Marking Software | EZCAD |
| Marking Software | |
| Min. Hardware Requirements | 1GHz or equal, USB 2.0 |
| Operating System | Windows XP, Win 7, Win 8, Win 10 |
| Min. Memory | RAM as recommended by OS, 100MB on HDD for Marking Software |
| Display | SVGA Color |
| Text | |
| Fonts | True-Type ( filled/unfilled), Single-Line Fonts |
| Orientation | User Defined |
| Letter Spacing | User Defined |
| Arc Text | Scalable and adjustable |
| Graphic | |
| Elements | Line, Rectangle, Circle, Ellipse (filled/ unfilled) |
| Formats | Vector: *.plt, *.dxf, *.ai, *.svg; BMP: *.bmp, *.jpg, *.jpeg, *.gif, *.png; |
| Options | |
Wide Range of Laser Workstations / Work Area Enclosures | |
Rotary-Axis | |
Vacuum System | |
Application Scenarios
