ZCTX-M Enclosed Laser Marking Machine

Utilizes advanced fiber laser technology for fast and precise marking, significantly improving production efficiency. High-intensity focused beam ensures fine, high-contrast marks on various materials (metals, plastics, ceramics, etc.). Protective housing prevents laser radiation leakage, ensuring operator safety and compliance with international standards. Fiber laser source requires no consumables (e.g., lamps/gases) and offers over 100,000 hours of operational life. Supports multiple file formats (e.g., DXF, PLT, BMP) and allows easy adjustment of marking parameters via intuitive interfaces.

产品描述
parameter

Brand: ZCLASER
Commodity name: ZCTX-M Enclosed Laser Marking Machine

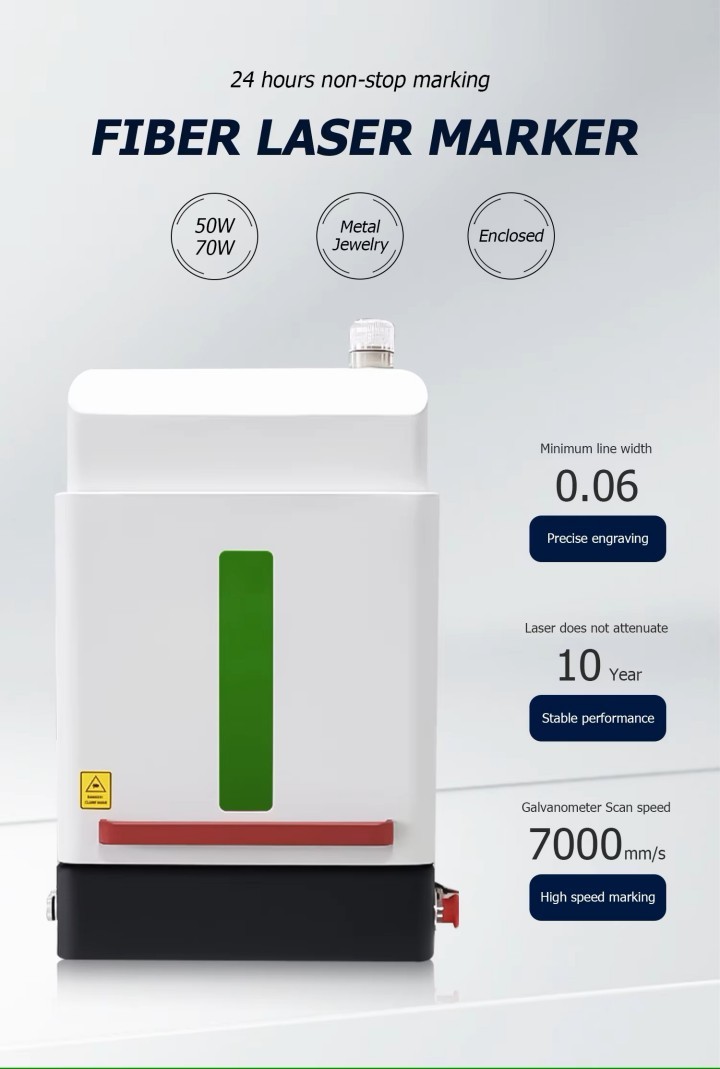

Hot sale Enclosed fiber laser marking machine ZCTX-M

Enclosed fiber laser marker come with full closed cover, protect operation. It is easy to operate. It main used to marking and engraving metal like stainless steel, carbon steel, aluminum, gold, silver etc. Also it can be used to cut silver, gold, brass etc. material. The power has 20w, 30w, 50w, 60w, 80w, 100w. There also have MOPA laser, do color marking.

Product Details

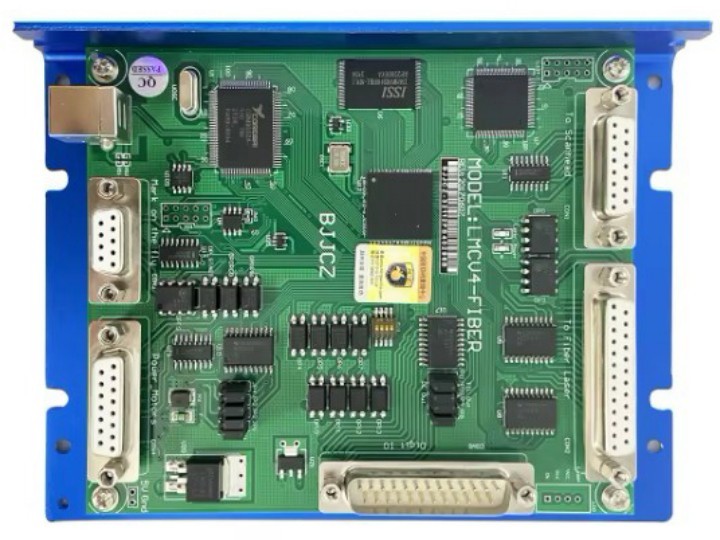

JCZ control board

Popular brand in the world, easy to operate, comes with many languages, different kinds of functions. It can meet customers different needs.

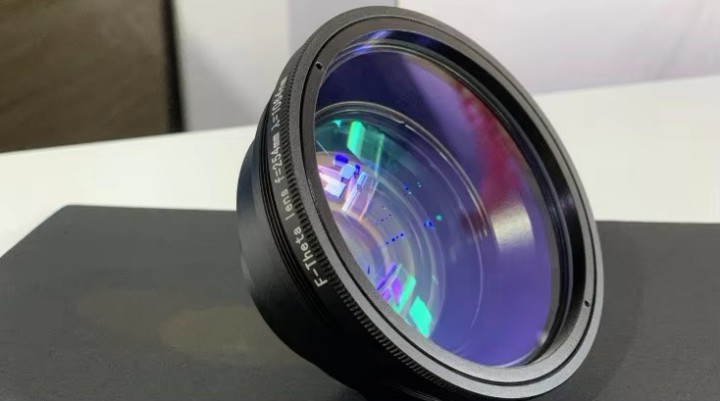

High-field lens

Special lens, facula transmission efficiency high focus more flexible, suitable for all kinds of size products working requirements.

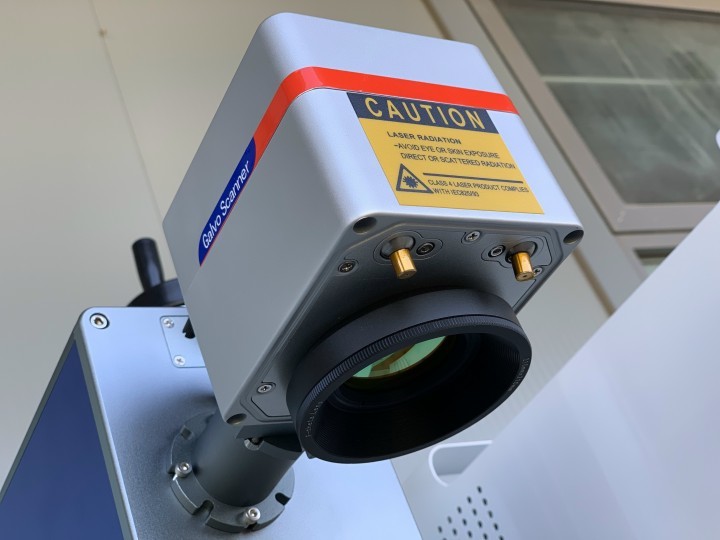

Special high speed lens

Adopt special high-speed digital lens. its precision is higher than the general lens, the engraving effect is fine.

Product Parameters

Model	JPT-20M7	JPT-30M7	JPT-60M7	JPT-100M7
Power	20W	30W	60W	100W
Wavelength	1064nm	1064nm	1064nm	1064nm
Beam Quality	M2<1.3	M2<1.3	M2<1.3	M2<1.3
Output Power	10%-100%(continuously to be adjusted）	10%-100%(continuously to be adjusted）	10%-100%(continuously to be adjusted）	10%-100%(continuously to be adjusted）
Output Frequency	20KHz-100KHz(continuously to be adjusted）	20KHz-100KHz(continuously to be adjusted）	20KHz-100KHz(continuously to be adjusted）	20KHz-100KHz(continuously to be adjusted）
Power Stability(8h)	<±1%rms	<±1%rms	<±1%rms	<±1%rms
Focus Spot Diameter	<0.01mm	<0.01mm	<0.01mm	<0.01mm
Engraving Range	≤400*400mm(customized)	≤400*400mm(customized)	≤400*400mm(customized)	≤400*400mm(customized)
Engraving Depth	1.2mm	1.2mm	1.2mm	1.2mm
Engraving Speed	800 standard characters/second	800 standard characters/second	800 standard characters/second	800 standard characters/second
Minimum Line Width	0.012mm	0.012mm	0.012mm	0.012mm
Minimum Character	0.1mm	0.1mm	0.1mm	0.1mm
Repeated Accuracy	±0.003mm	±0.003mm	±0.003mm	±0.003mm
System Operation	Windows XP/2000/98	Windows XP/2000/98	Windows XP/2000/98	Windows XP/2000/98
Cooling Mode	Air Cooling	Air Cooling	Air Cooling	Air Cooling
Environment Temperature	10℃~35℃	10℃~35℃	10℃~35℃	10℃~35℃
Environment Humidity	20%-80%	20%-80%	20%-80%	20%-80%
Power Requirement	220V/Single phase/50Hz/<400W	220V/Single phase/50Hz/<400W	220V/Single phase/50Hz/<400W	220V/Single phase/50Hz/<400W
Life of Laser Module	100000Hrs	100000Hrs	100000Hrs	100000Hrs
Host Size	400mmx350mmx635mm	400mmx350mmx635mm	400mmx350mmx635mm	400mmx350mmx635mm

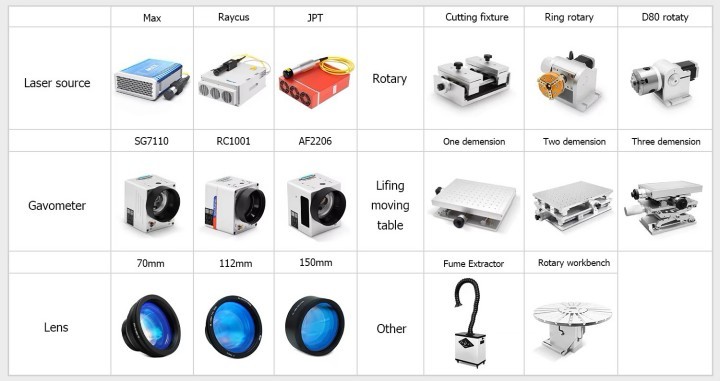

Optional Accessories

Application Scenarios

- 参数列表
  - Brand： ZCLASER
  - Model： ZCTX-M
  - Price： $2,380 ~ $2,480
  - Delivery period： 1 unit/7 days
  - Warranty period： 2 years warranty for core components, 3 years warranty for the whole machine
