ZCGX-DTW Desktop Fiber Laser Marking Machine
- 产品描述
- parameter
-
- Commodity name: ZCGX-DTW Desktop Fiber Laser Marking Machine
Sino digital galvanometer scanning system with dual red light indicators to focus and display the marking position.
This is a type of laser marking equipment that employs optical fiber as the laser transmission medium to generate a high-energy laser beam. In the static working mode, it can conduct high-precision marking and engraving of materials, etc. It is widely utilized in electronics, hardware, medical, automotive, and many other industries.
Features:
1.This fiber laser marking machine has a service life of 100,000 hours without any consumables and laser marking is a permanent mark that will not disappear over time. 2.The structure of the fiber laser marking machine includes: galvanometer, laser, control card, power supply, etc., with high precision and fast marking speed.
3.Support vector graphics in DXF, PLT, AI and other formats. Software can also be developed according to requirements.
4.Support serial number, TCPIP, variable text, date, time and other functions.
5.The depth of marking can be set freely according to requirements.
6.Non-contact processing, so there is no need to clamp the product.
7.The fiber laser marking machine can be designed with a rotating device to mark LOGO, letters and numbers on gold, silver, and brass rings and bracelets. The mark size can be customized according to your needs.
8.This one is light, compact, easy to carry, powerful, and can be used in home office. It can be used on the table without taking up space, which can save you a lot of freight.
9.Fiber laser marking machine can also mark stainless steel, aluminum, plastic, such as bird rings, animal ear tags, nameplates, etc.
Product Details

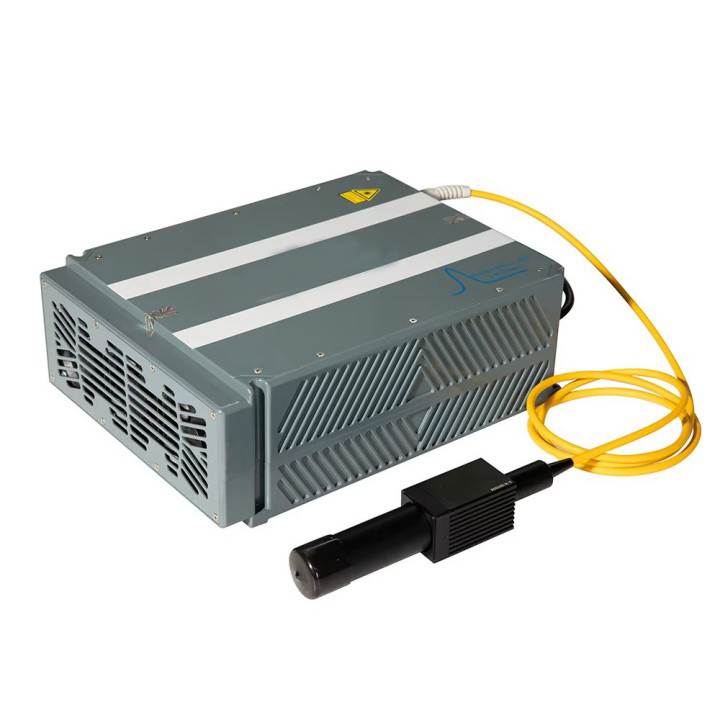

Laser Source
RAYCUS/ MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed.
Also supply CO2 laser, UV laser, MOPA laser, green laser, etc.
Work Table
All machine standard with the aluminum work table, which could fix the tools.
Option table: 2D working table, 3D Working table, Cutting Work table for jewelry, also could customize the special work table for meet your needs.

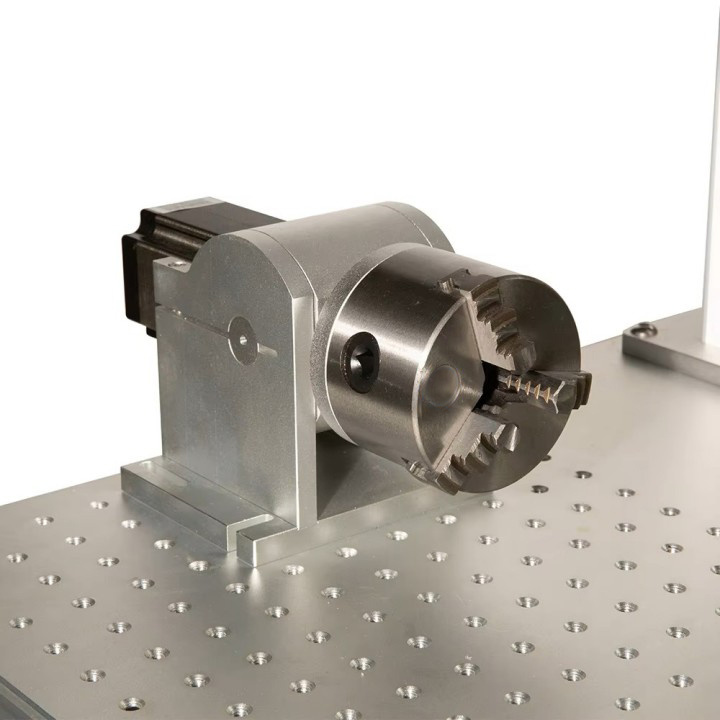

Rotary
Different diameter rotary with 50mm, 80mm, 100mm, 150mm and the other size for meet customer's need.
Have special rotary for Ring inside and outside marking. Special rotary for Pens, or bulb. We also could customize the other type of rotary for customer.

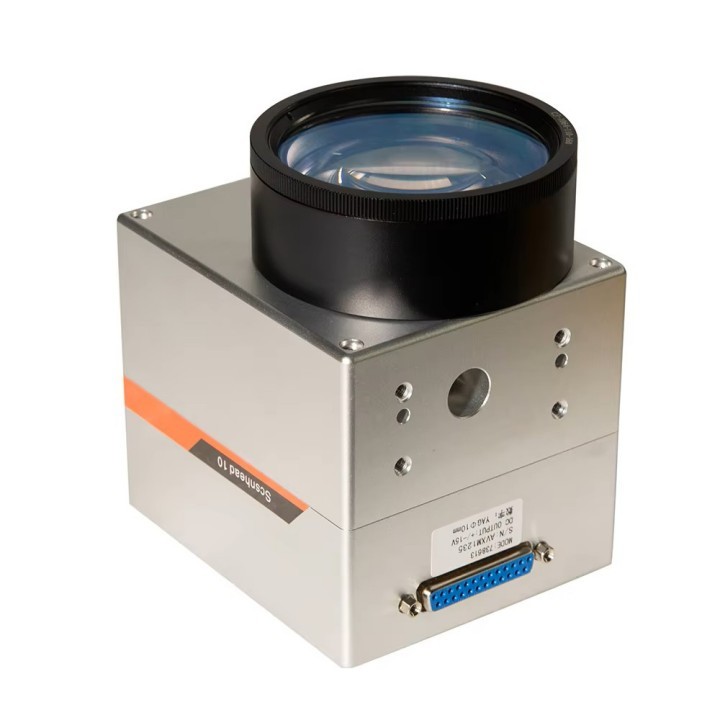

Galvo Lens / Scan Head
Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s marking speed.
Supply different brand and mode, also could make the auto focus type, and the 3D type.

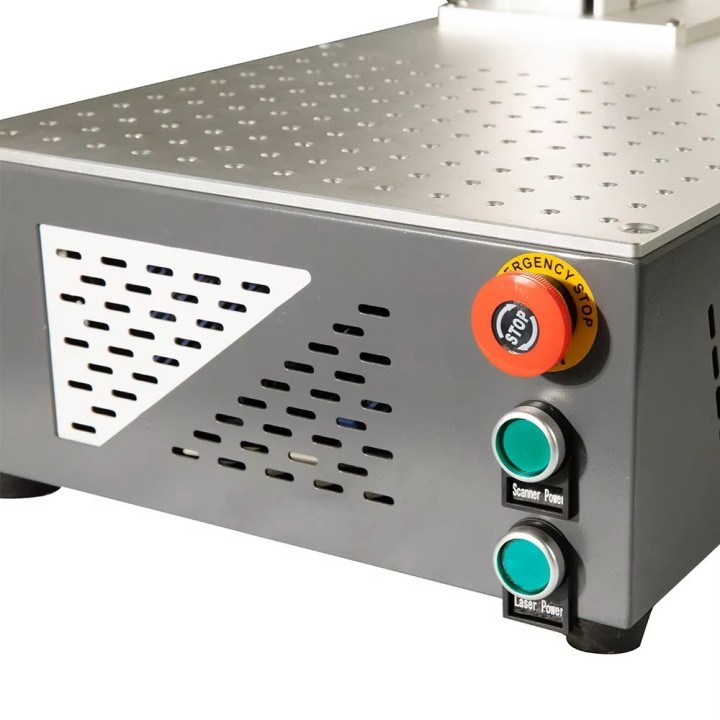

Control Panel
Emergency stop: biggest protect the operator.
Split power switch for Laser Source.
Split power switch for Scan Head.
Humanized control system, easy to operate, safe and convenient, dust proof design.

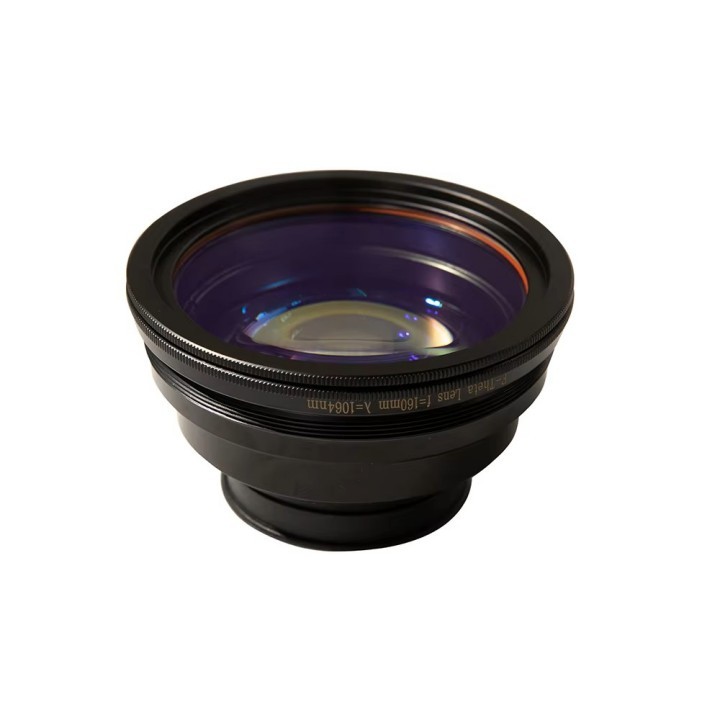

Field Lens
110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed.
Also supply the other size.
Product Parameters
item
value
Application
Laser Marking
Working Accuracy
0.01MM
Graphic Format Supported
AI, PLT, DXF, BMP, DST, LAS, DXP
Laser Type
Fiber Laser
Condition
New
CNC or Not
Yes
Cooling Mode
Air Cooling
Control Software
EZCAD2
Place of Origin
Shandong, China Laser Source Brand
JPT/RAYCUS/MAX
Control System Brand
JCZ
Weight (KG)
40KG
Key Selling Points
Easy to Operate
Warranty
2 years
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company
Marking Area
110mm*110mm
Machinery Test Report
Provided
Video outgoing-inspection
Provided
Warranty of core components
2 years
Core Components
Laser
Mode of Operation
Pulsed
Configuration
stand-alone
Feature
Air-cooled
Working voltage
0.5KW/AC220V/50Hz(option)
Cooling system
Air Cooling
Minimum character
0.1mm
Minimum line width
0.01mm
Repeatability accuracy
0.003mm
Resolution
0.001mm
Marking speed
0-7000mm/s
Mode of Operation
Pulsed
Marking Area
100mm*100mm-300mm*300mm, 100*100mm-300*300mm(Option)
Control Software
EZCAD2
Application Scenarios
-
-
参数列表
- Brand：
- Model：
- Price：
- Delivery period：
- Warranty period：
-
Keywords:
ZCGX-DTW
Classification:
Product Description
This is a type of laser marking equipment that employs optical fiber as the laser transmission medium to generate a high-energy laser beam. In the static working mode, it can conduct high-precision marking and engraving of materials, etc. It is widely utilized in electronics, hardware, medical, automotive, and many other industries.
Features:
1.This fiber laser marking machine has a service life of 100,000 hours without any consumables and laser marking is a permanent mark that will not disappear over time. 2.The structure of the fiber laser marking machine includes: galvanometer, laser, control card, power supply, etc., with high precision and fast marking speed.
3.Support vector graphics in DXF, PLT, AI and other formats. Software can also be developed according to requirements.
4.Support serial number, TCPIP, variable text, date, time and other functions.
5.The depth of marking can be set freely according to requirements.
6.Non-contact processing, so there is no need to clamp the product.
7.The fiber laser marking machine can be designed with a rotating device to mark LOGO, letters and numbers on gold, silver, and brass rings and bracelets. The mark size can be customized according to your needs.
8.This one is light, compact, easy to carry, powerful, and can be used in home office. It can be used on the table without taking up space, which can save you a lot of freight.
9.Fiber laser marking machine can also mark stainless steel, aluminum, plastic, such as bird rings, animal ear tags, nameplates, etc.
Product Details
Laser Source
RAYCUS/ MAX/IPG/JPT, multiple choice. Different brands, different laser power are available. The higher power, the faster marking speed.
Also supply CO2 laser, UV laser, MOPA laser, green laser, etc.
Work Table
All machine standard with the aluminum work table, which could fix the tools.
Option table: 2D working table, 3D Working table, Cutting Work table for jewelry, also could customize the special work table for meet your needs.
Rotary
Different diameter rotary with 50mm, 80mm, 100mm, 150mm and the other size for meet customer's need.
Have special rotary for Ring inside and outside marking. Special rotary for Pens, or bulb. We also could customize the other type of rotary for customer.
Galvo Lens / Scan Head
Two high speed motor control reflect lens inside the head, which give the machine max 7000mm/s marking speed.
Supply different brand and mode, also could make the auto focus type, and the 3D type.
Control Panel
Emergency stop: biggest protect the operator.
Split power switch for Laser Source.
Split power switch for Scan Head.
Humanized control system, easy to operate, safe and convenient, dust proof design.
Field Lens
110*110mm, 175*175mm, 200*200mm (standard), 3000*300mm, different lens. Same laser power with the smaller lens will have the faster marking speed.
Also supply the other size.
Product Parameters
item | value |
Application | Laser Marking |
Working Accuracy | 0.01MM |
Graphic Format Supported | AI, PLT, DXF, BMP, DST, LAS, DXP |
Laser Type | Fiber Laser |
Condition | New |
CNC or Not | Yes |
Cooling Mode | Air Cooling |
Control Software | EZCAD2 |
Place of Origin | Shandong, China |
Laser Source Brand | JPT/RAYCUS/MAX |
Control System Brand | JCZ |
Weight (KG) | 40KG |
Key Selling Points | Easy to Operate |
Warranty | 2 years |
Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company |
Marking Area | 110mm*110mm |
Machinery Test Report | Provided |
Video outgoing-inspection | Provided |
Warranty of core components | 2 years |
Core Components | Laser |
Mode of Operation | Pulsed |
Configuration | stand-alone |
Feature | Air-cooled |
Working voltage | 0.5KW/AC220V/50Hz(option) |
Cooling system | Air Cooling |
Minimum character | 0.1mm |
Minimum line width | 0.01mm |
Repeatability accuracy | 0.003mm |
Resolution | 0.001mm |
Marking speed | 0-7000mm/s |
Mode of Operation | Pulsed |
Marking Area | 100mm*100mm-300mm*300mm, 100*100mm-300*300mm(Option) |
Control Software | EZCAD2 |
Application Scenarios
