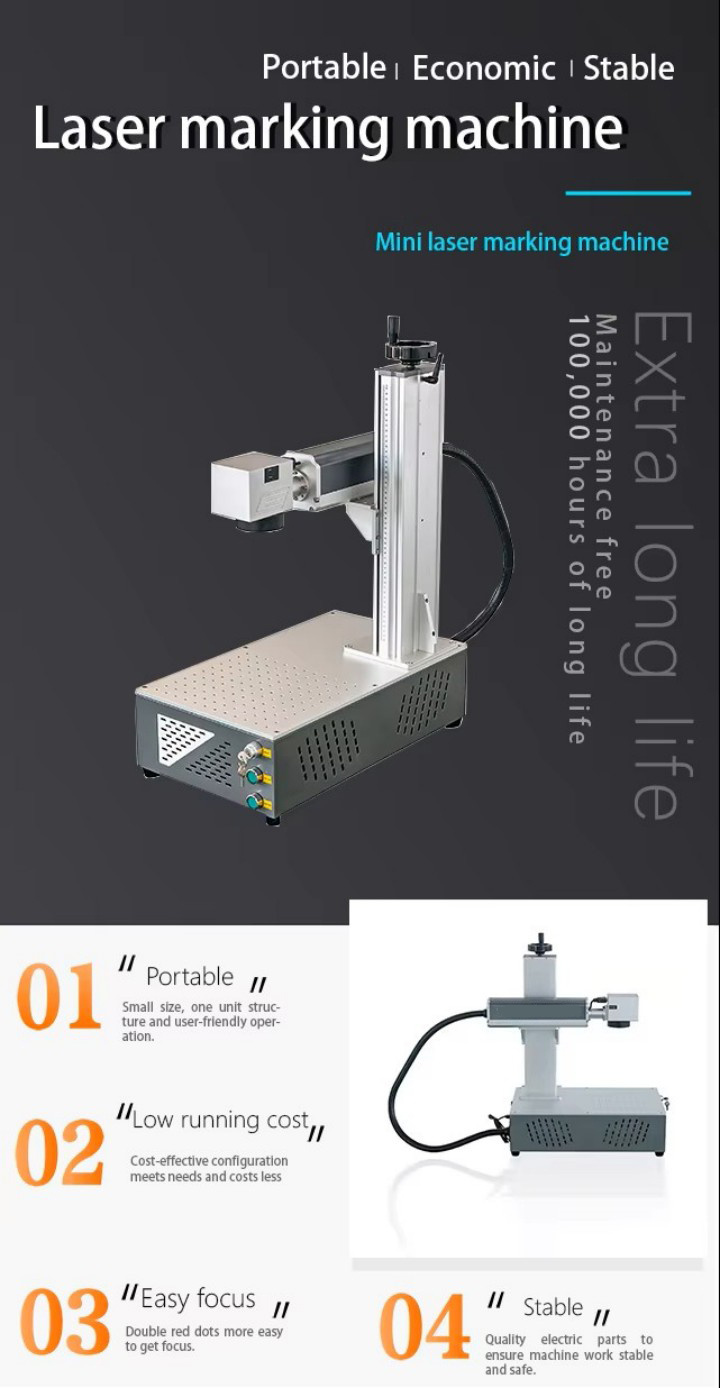

ZCGX-DI Integrated Fiber Laser Marking Machine
- 产品描述
- parameter
-
- Brand: ZCLASER
- Commodity name: ZCGX-DI Integrated Fiber Laser Marking Machine
Sino digital galvanometer scanning system with dual red light indicators to focus and display the marking position.
Main Features
1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can mark on the printing surface of any regular or irregular, and mark the workpiece without exerting stress which ensure the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings don't subside with the environmental factors such as touch, acid and reducing gases, high temperature, low temperature, etc.
3). High engraving precision: laser marking machine engrave items with fine lines, minimum line width is up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping .
4). The running cost is low: the marking speed is fast and the mark is formed fast, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment at the begining, it is much lower running cost and longer lifetime from a long term.
5). High Efficiency: The laser beam is controlled by the computer and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.
6). Anti-fake:Applying laser marking technology, the mark carved is not easy to be imitated and changed, to a certain extent, has a good anti-fake effect.
Product Details

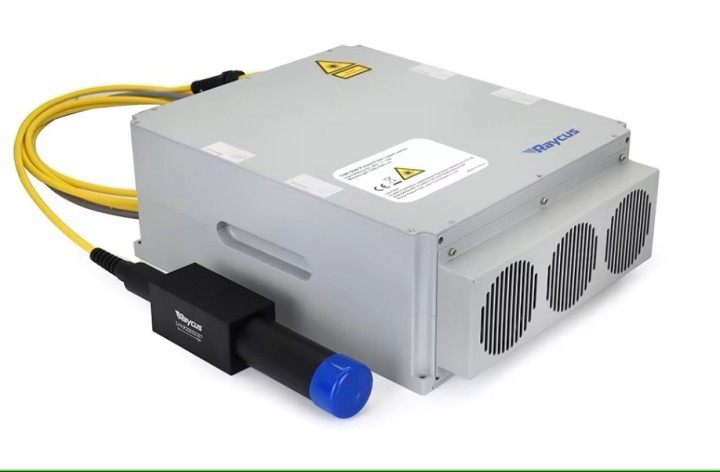

RAYCUS:
- Good beam quality；
- High energy density;
- Wide modulation frequency
- High reliability, long life, maintenance-free operation

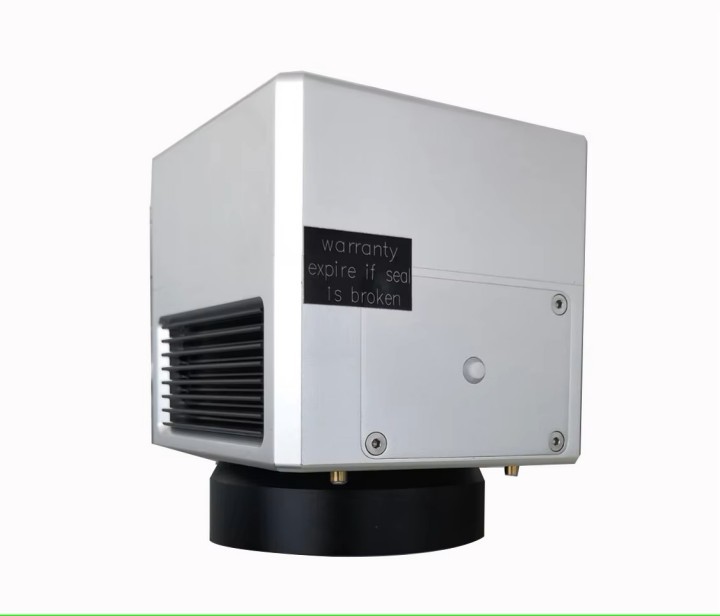

HANS:
1. Preferred galvanometer lens with various coatings, good flatness and high damage threshold;
2. Excellent photoelectric encoder performance, high linearity, low drift;
3. Rich experience in debugging driver board, high consistency and stable performance;
4. Strict factory testing standards, low failure

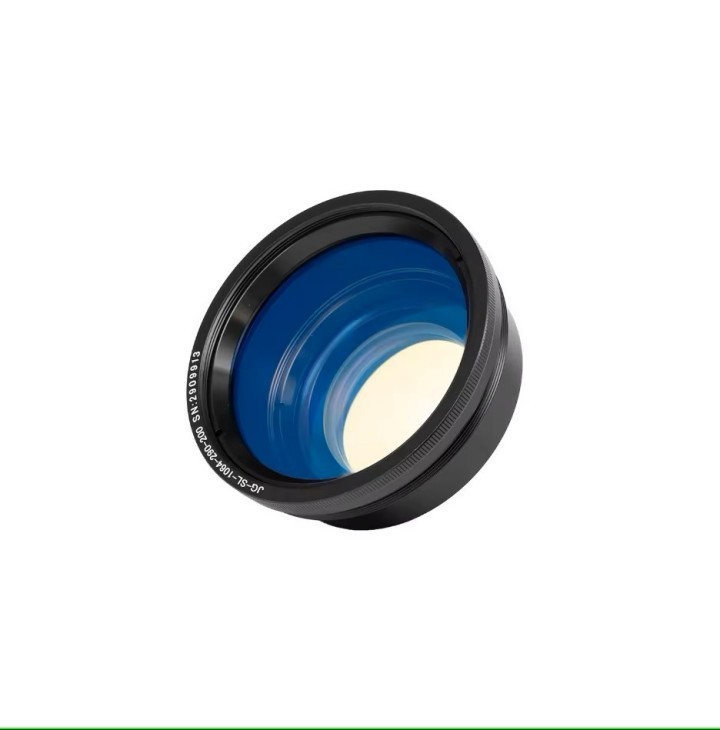

LENS:
110*110mm 150*150mm
175*175mm 200*200mm
220*220mm 300*300mm
( optional )

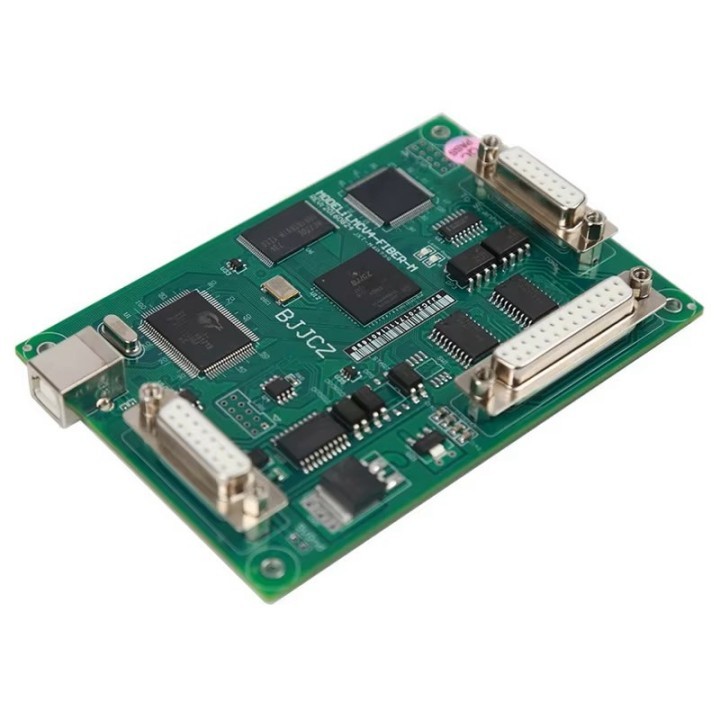

BJJCZ:
- Support large-format processing control; - High-performance motion control expansion ;
- Increase the high-performance motion control expansion function;
- Support large-format processing control;
- Connected through the network port, the transmission distance is not limited, can be controlled remotely operation;
- Support a variety of mainstream laser types.
Product Parameters
Model No
ZC-20GS
ZC-30GS
ZC-50GS
Working area
110*110mm(4.3in*4.3in)
150*150mm (5.9*5.9 in)
175*175mm(6.9in*6.9in) Optional
Marking Speed
≤8000mm/s
Output Power Adjustment Range
10%~100%
Minimum Line Width
0.01mm(0.0004in) Depends on the material
Minimum Character
0.2mm(0.008in) Depends on the materials
Laser Type
RAYCUS/MAX Optional
Cooling Type
Air Cooling
Laser Wavelength
1064nm
Electrical Requirements
110V-240V/50Hz-60Hz
according to local electricity supply
Supported Image Format
PLT/DXF/AI/BMP/JPEG etc.
Optional Spare Parts
Rotary/2D worktable/Cutting fixture and so on.
Optional Accessories

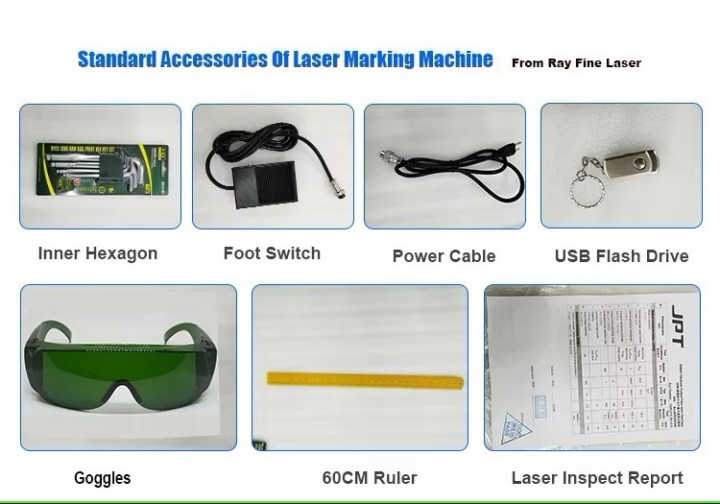

Standard Accessories

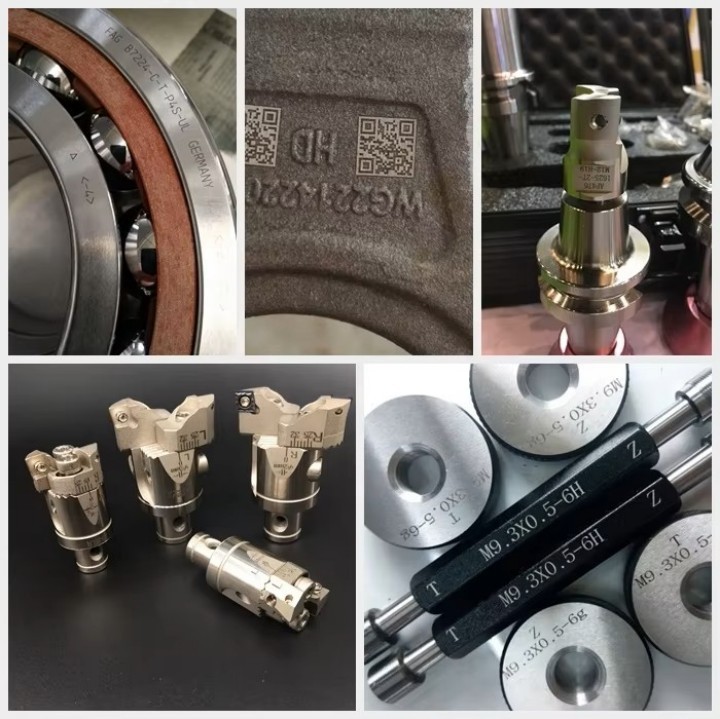

Application Scenarios
-
-
参数列表
- Brand： ZCLASER
- Model： ZCGX-DI
- Price： $1,100-1,300
- Delivery period：
- Warranty period：
-
Keywords:
ZCGX-DI
Classification:
Product Description
Main Features
1) Non- contact marking: Laser marking is processed to non- mechanical "knife", can mark on the printing surface of any regular or irregular, and mark the workpiece without exerting stress which ensure the accuracy of the workpiece. No corrosion on the work surface, no "tool" wear, no poison, no pollution.
2). Permanent: The markings don't subside with the environmental factors such as touch, acid and reducing gases, high temperature, low temperature, etc.
3). High engraving precision: laser marking machine engrave items with fine lines, minimum line width is up to 0.04mm. The markings are clear, durable and beautiful. Laser marking can meet the needs of printing large quantities of data on minimal plastic parts. For example, we can print two-dimensional barcode with higher precision and higher definition, and have stronger market competitiveness compared with the way of stamping .
4). The running cost is low: the marking speed is fast and the mark is formed fast, and the energy consumption is small, so the running cost is low. Although the laser marking machine has more equipment investment than the traditional marking equipment at the begining, it is much lower running cost and longer lifetime from a long term.
5). High Efficiency: The laser beam is controlled by the computer and can move at high speed (5~7 meters per second), the marking process can be completed in a few seconds.
6). Anti-fake:Applying laser marking technology, the mark carved is not easy to be imitated and changed, to a certain extent, has a good anti-fake effect.
Product Details
RAYCUS:
- Good beam quality；
- High energy density;
- Wide modulation frequency
- High reliability, long life, maintenance-free operation
HANS:
1. Preferred galvanometer lens with various coatings, good flatness and high damage threshold;
2. Excellent photoelectric encoder performance, high linearity, low drift;
3. Rich experience in debugging driver board, high consistency and stable performance;
4. Strict factory testing standards, low failure
LENS:
110*110mm 150*150mm
175*175mm 200*200mm
220*220mm 300*300mm
( optional )
BJJCZ:
- Support large-format processing control; - High-performance motion control expansion ;
- Increase the high-performance motion control expansion function;
- Support large-format processing control;
- Connected through the network port, the transmission distance is not limited, can be controlled remotely operation;
- Support a variety of mainstream laser types.
Product Parameters
Model No | ZC-20GS | ZC-30GS | ZC-50GS |
Working area | 110*110mm(4.3in*4.3in) | ||
Marking Speed | ≤8000mm/s | ||
Output Power Adjustment Range | 10%~100% | ||
Minimum Line Width | 0.01mm(0.0004in) Depends on the material | ||
Minimum Character | 0.2mm(0.008in) Depends on the materials | ||
Laser Type | RAYCUS/MAX Optional | ||
Cooling Type | Air Cooling | ||
Laser Wavelength | 1064nm | ||
Electrical Requirements | 110V-240V/50Hz-60Hz according to local electricity supply | ||
Supported Image Format | PLT/DXF/AI/BMP/JPEG etc. | ||
Optional Spare Parts | Rotary/2D worktable/Cutting fixture and so on. | ||
Optional Accessories
Standard Accessories
Application Scenarios
