ZCCV-TH Portable Laser Marking Machine
- 产品描述
- parameter
-
- Brand: ZCLASER
- Commodity name: ZCCV-TH Portable Laser Marking Machine
handheld smart laser machine is portable, battery powered and fully autonomous marking machine! Thanks to its powerful 24V rechargeable lithium battery power supply system, under normal use It can keep working for 6-8 hours, has strong battery life, and is not dragged by cables, avoiding the embarrassment of sudden power failure during use. Its light weight and multi-function, especially Suitable for perfect marking on large, bulky or difficult-to-handle workpieces.
Features
The shell is made of sheet metal and coated with multilayer anti-rust paint, so it is not easy to rust. The whole machine is firm and not easy to be damaged during transportation.
The three sides of the sheet metal are equipped with exhaust devices (and at the same time cooperates with industrial chillers), which enables the machine to work continuously 24 hours a day without overheating.
Product Details

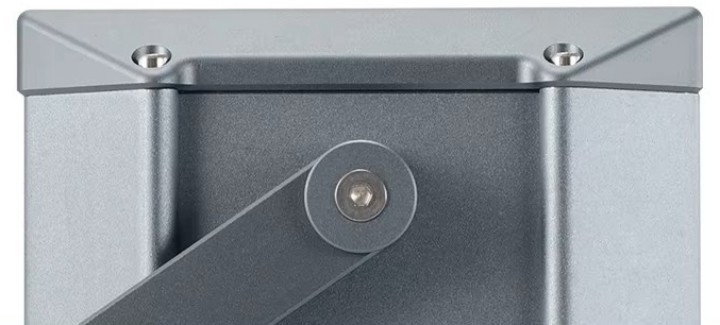

Aviation aluminum alloy material
High-end oxidation process, wear-resistant and corrosion-resistant.
RAYCUS laser source
Cooling system ensure the stability of laser working, suitable for marking all kind of metals and some hard plastic.

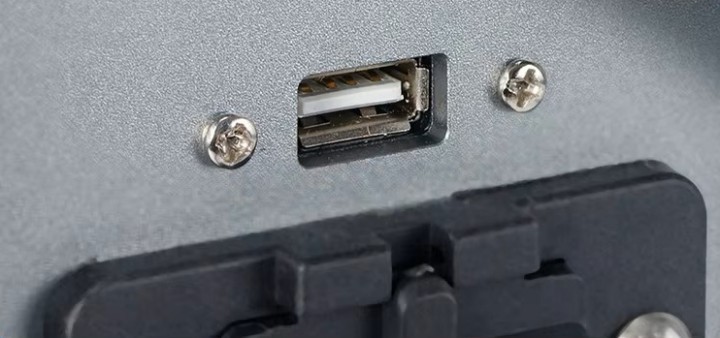

USB and power port
Connect to external port can print various files.

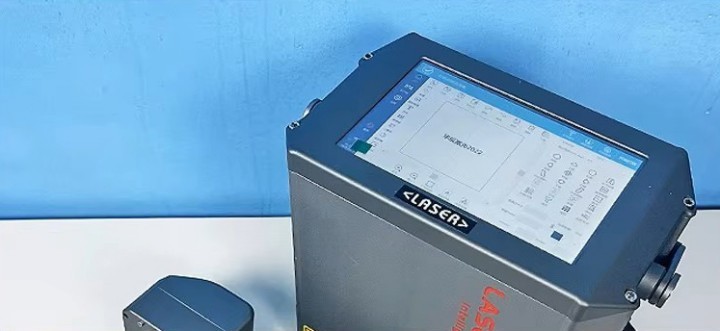

8 inch touch screen
One key operation intelligent system, simple operation.

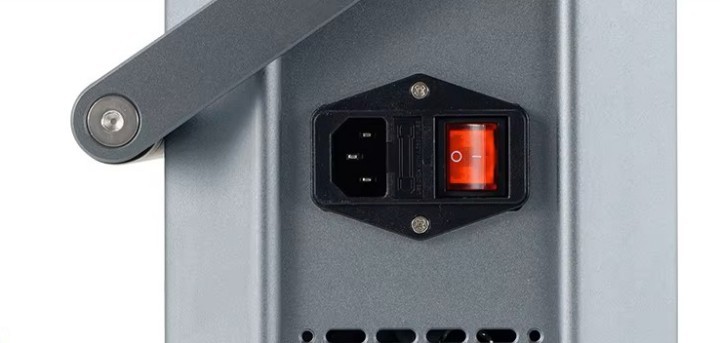

Power and emergency stop button
After tens of thousands of button tests, durable.
Product Parameters

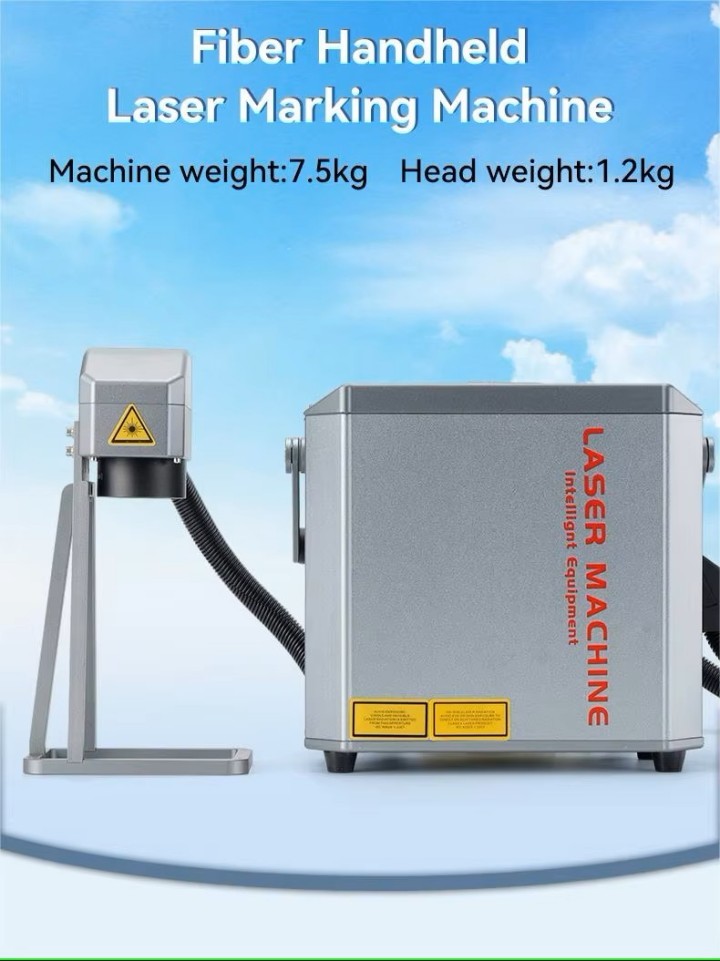

Handheld Fiber Laser Marking Machine
MachineModel
20W(I)
20W(B)
30W(I)
30W(B)
Machine material
Engineering plastic
Laser source
Service life is more than 100,000 hours Machine
laser source brand
Max(Standard)/JPT
Laser wavelength
1064nm
Marking speed
≤7000mm/s
Cooling system
Air cooling
CodingMinimum line width
0.0012mm
Repeated accuracy
0.003mm
Marking range
100*100mm (Standard )
Positioning method
Red light guidance
Number of marking lines
Any row within the marking range Supported
SoftwareSupported Languages
English, French, Spanish, German, Chinese, Russian, Portuguese, Thai, Arabic, etc.
Operating system
Linux system
Data protection
With power-off data protection function
File format
BMP/DXF/HPGL/JPEG/PLT
Barcode
CODE39/CODE128/CODE126/QR
Environment
Requirement
Temperature0°C-45°C, humidity ≤95%RH
Optional Accessories
Fiber laser marking can not be used for transparent materials, such as transparent material marking needs, please contact customer service consultation.

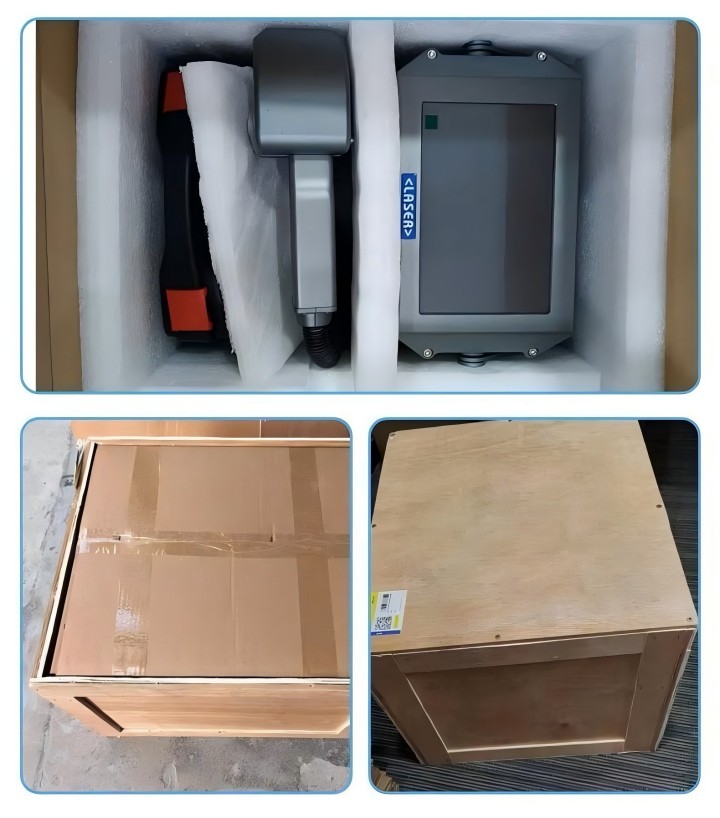

Packing & Delivery
-
-
参数列表
- Brand： ZCLASER
- Model： ZCCV-TH
- Price： $1,280 ~ $1,400
- Delivery period： 1 unit/7 days
- Warranty period： 2 years warranty for core components, 3 years warranty for the whole machine
-
Keywords:
Portable Laser Marking Machine
Fiber Marking Machine
Marking Machine For Metal
Classification:
Product Description
Features
The shell is made of sheet metal and coated with multilayer anti-rust paint, so it is not easy to rust. The whole machine is firm and not easy to be damaged during transportation.
The three sides of the sheet metal are equipped with exhaust devices (and at the same time cooperates with industrial chillers), which enables the machine to work continuously 24 hours a day without overheating.
Product Details
Aviation aluminum alloy material
High-end oxidation process, wear-resistant and corrosion-resistant.
RAYCUS laser source
Cooling system ensure the stability of laser working, suitable for marking all kind of metals and some hard plastic.
USB and power port
Connect to external port can print various files.
8 inch touch screen
One key operation intelligent system, simple operation.
Power and emergency stop button
After tens of thousands of button tests, durable.
Product Parameters
Handheld Fiber Laser Marking Machine | |||||
| Model | 20W(I) | 20W(B) | 30W(I) | 30W(B) |
Machine material | Engineering plastic | ||||
Laser source | Service life is more than 100,000 hours Machine | ||||
laser source brand | Max(Standard)/JPT | ||||
Laser wavelength | 1064nm | ||||
Marking speed | ≤7000mm/s | ||||
Cooling system | Air cooling | ||||
| Minimum line width | 0.0012mm | |||
Repeated accuracy | 0.003mm | ||||
Marking range | 100*100mm (Standard ) | ||||
Positioning method | Red light guidance | ||||
Number of marking lines | Any row within the marking range Supported | ||||
| Supported Languages | English, French, Spanish, German, Chinese, Russian, Portuguese, Thai, Arabic, etc. | |||
Operating system | Linux system | ||||
Data protection | With power-off data protection function | ||||
File format | BMP/DXF/HPGL/JPEG/PLT | ||||
Barcode | CODE39/CODE128/CODE126/QR | ||||
Environment | Requirement | Temperature0°C-45°C, humidity ≤95%RH | |||
Optional Accessories
Fiber laser marking can not be used for transparent materials, such as transparent material marking needs, please contact customer service consultation.
Packing & Delivery
ZCLASER
Shandong Zhancheng Intelligent Manufacturing Co., Ltd is a professional research, development, production andsales of laser cutting marking equipment company, can be tailored for differententerprises of various non-standard laser equipment. Companies and many large well-known enterprises at home and abroad to establish long- term stability ofhe interactive relations of cooperation, forthe majority of users with the perfect laser processing solutions and thecorresponding supporting facilities, widelyused in auto parts, instrument, measuring tool cutting tool, electronic communications, aerospace, petrochemical, military products, medicine, food,packaging, and various metal and non-metal material marking.and is a leading enterprise in the laser industry.
