Shandong Zhancheng Intelligent Manufacturing Co., Ltd
Automatic Platform Laser Welding Machine
All-steel chrome-plated machine shell, fully automatic standard welding, optional stepper/servo motor. Machine configuration and rotary fixture can be selected according to precision processing requirements.
- 产品描述
- parameter
-
- Brand: ZCLASER
- Commodity name: Automatic Platform Laser Welding Machine
All-steel chrome-plated machine shell, fully automatic standard welding, optional stepper/servo motor. Machine configuration and rotary fixture can be selected according to precision processing requirements.

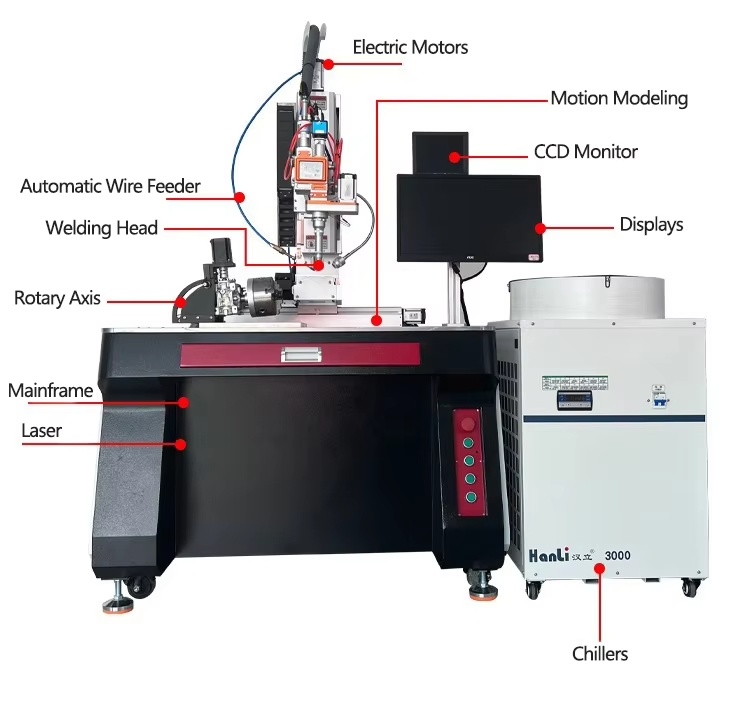

Automatic Laser Welding Machine For Metals
1. This machine adopts 1000W fiber laser, which has high electro-optical conversion efficiency and longer laser service life;
2. the laser beam quality is very good, the welding speed is fast, more than 5 times the speed of the traditional fiber transmission laser welding machine, the welding effect is superb, the depth large, small taper, high precision, fully meet the needs of users in different industries, the welding is solid,smooth and beautiful;
3. the whole machine has low energy consumption, maintenance-free, high stability, can save users a lot of processing costs for long-term use;
4. The control system is a professional four-axis control system specially designed for laser welding. It has powerful PC control and is easy to program, debug and maintain. Protection, automatic or semi-automatic spot welding, butt welding, lamination welding, sealing welding, welding for complex flat lines, arcs and arbitrary tracks Connection; high stability, strong scalability, easy to learn and easy to use;
5. equipped with large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, can be equipped with time rotating shaft, 3D laser welding can be realized for special-shaped three-dimensional products, with high speed and long life and high precision;
6. can be time splitting or energy splitting, suitable for different processing applications, multi-station processing applications, can be widely used in both spot laser welding for welding and continuous welding and flexible machining industries.
7. can be customized automatic fixtures, can be combined with assembly lines, photoelectric sensors, pneumatic fixtures and other combinations for automatic processing and mass production.

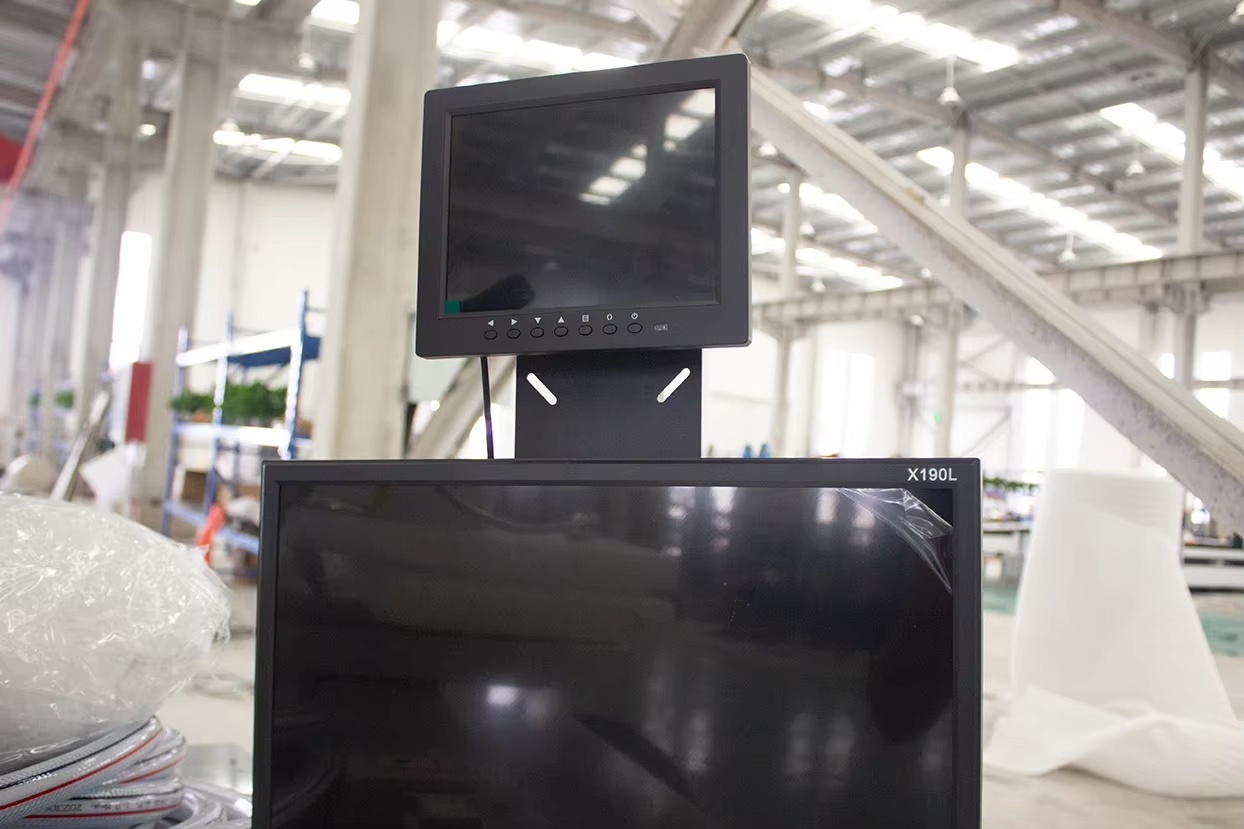

Industrial computer
Built-in CCD vision system, real-time viewing of machine welding detailsEnables multi-axis high performance motion.

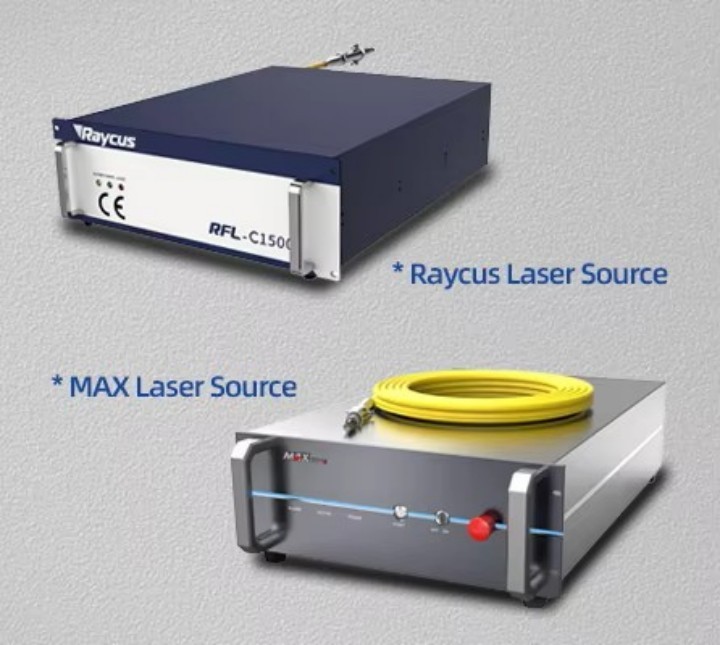

Fiber Laser Scource
Adopting famous brands (Raycus, JPT, MAX, IPG and other brands), the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.

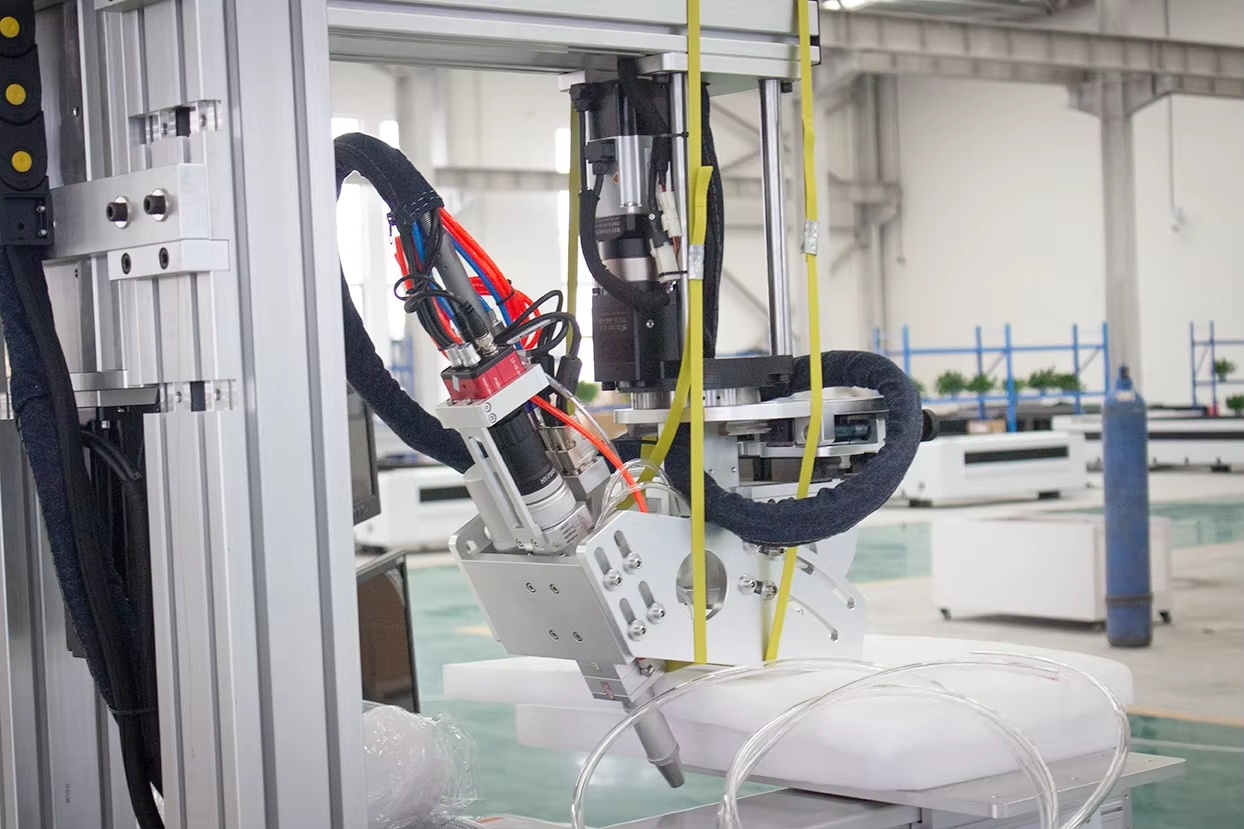

Robot Welding Arm
Introduce three-dimensional automatic processing, realize automatic welding with the help of robot arm, reduce the probability of defective products, save labor and reduce costs.

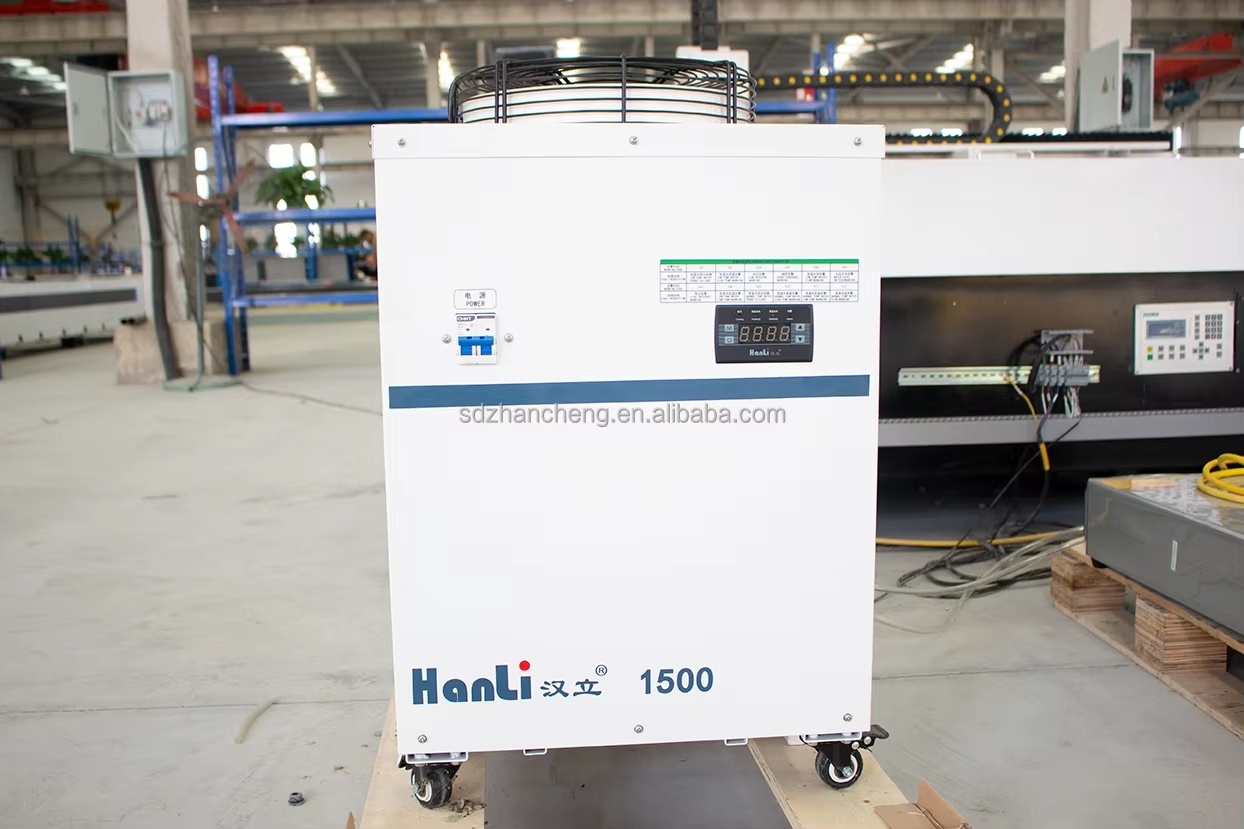

Water cooler
Dual constant temperature refrigerators, independent cooling of the laser and welding head, effectively protecting the safety of the machine.

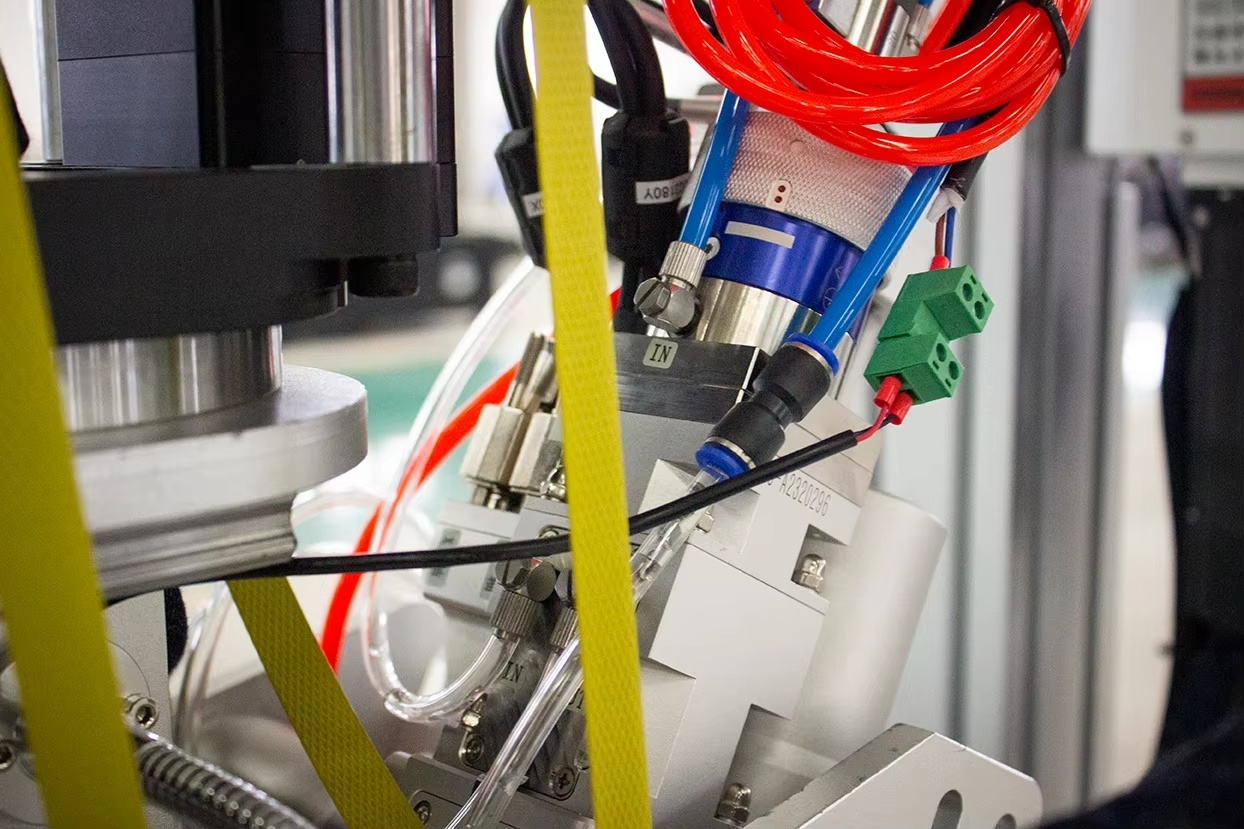

Laser welding head auto focus
Smart proximity, built-in sensor, automatically locks the focus, saves operating time, one-button start, easier and more convenient operation.

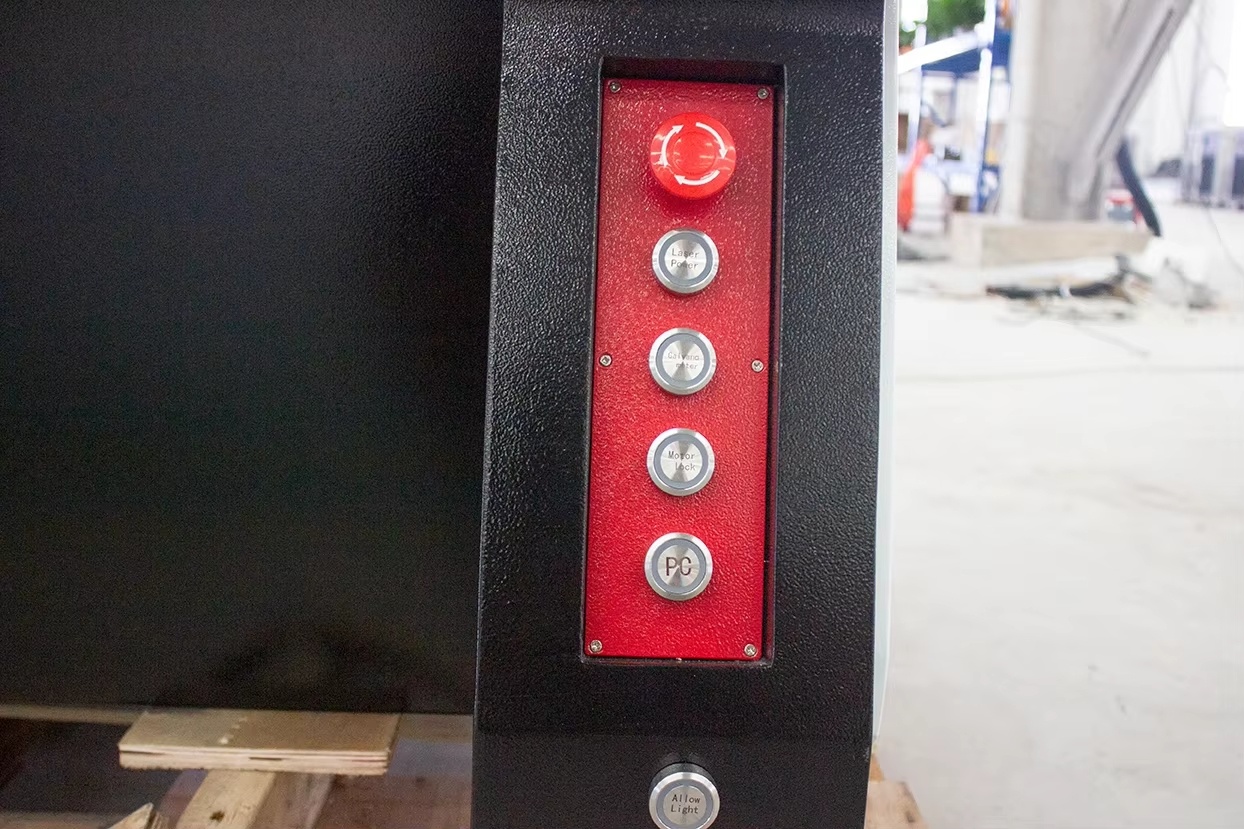

Integrated control switch
Integrated power control for easy on/off operation.
Parameters
Laser power
1000w/1500w/2000w/3000w
Welding materials
Metal (welding thickness is different for different materials)
Maximum Melting Width
5mm
Maximum Melting Depth
10mm
Laser wavelength
1064nm
Output Power
10-100%
welding track
Straight/circular/irregular welding
cooling method
water cooling
Spot size
0.1-5mm
laser source
JPT/max/RAYCUS/RECI
Effective itinerary
450*300*400*100(X*Y*Z*R)can be customized
welding system
Automatic welding system (programmable)
Software Support Format
DWG/DFX/BMP/PCX/PLT
Application Scenarios
-
-
参数列表
- Brand： ZCLASER
- Model： Platform Laser Welding Machine
- Price： $5,200~$5,620
- Delivery period： 1 unit/7 days
- Warranty period： Three-year warranty on the entire unit
-
Keywords:
5axis Laser Welder Machine
Laser Welder Machine
Fiber Laser Welding Machine 100W
welding
laser
machine
fiber
Classification:
Product Description
Automatic Laser Welding Machine For Metals
1. This machine adopts 1000W fiber laser, which has high electro-optical conversion efficiency and longer laser service life;
2. the laser beam quality is very good, the welding speed is fast, more than 5 times the speed of the traditional fiber transmission laser welding machine, the welding effect is superb, the depth large, small taper, high precision, fully meet the needs of users in different industries, the welding is solid,smooth and beautiful;
3. the whole machine has low energy consumption, maintenance-free, high stability, can save users a lot of processing costs for long-term use;
4. The control system is a professional four-axis control system specially designed for laser welding. It has powerful PC control and is easy to program, debug and maintain. Protection, automatic or semi-automatic spot welding, butt welding, lamination welding, sealing welding, welding for complex flat lines, arcs and arbitrary tracks Connection; high stability, strong scalability, easy to learn and easy to use;
5. equipped with large workbench, platform XY dual-axis electric module, Z-axis with power-off brake motor, can be equipped with time rotating shaft, 3D laser welding can be realized for special-shaped three-dimensional products, with high speed and long life and high precision;
6. can be time splitting or energy splitting, suitable for different processing applications, multi-station processing applications, can be widely used in both spot laser welding for welding and continuous welding and flexible machining industries.
7. can be customized automatic fixtures, can be combined with assembly lines, photoelectric sensors, pneumatic fixtures and other combinations for automatic processing and mass production.
Product Details
Industrial computer
Built-in CCD vision system, real-time viewing of machine welding detailsEnables multi-axis high performance motion.
Fiber Laser Scource
Adopting famous brands (Raycus, JPT, MAX, IPG and other brands), the photoelectric conversion rate is greatly improved, laser power is enhanced, has better welding effect, can according to the needs of customers with different configurations to meet customer needs.
Robot Welding Arm
Introduce three-dimensional automatic processing, realize automatic welding with the help of robot arm, reduce the probability of defective products, save labor and reduce costs.
Water cooler
Dual constant temperature refrigerators, independent cooling of the laser and welding head, effectively protecting the safety of the machine.
Laser welding head auto focus
Smart proximity, built-in sensor, automatically locks the focus, saves operating time, one-button start, easier and more convenient operation.
Integrated control switch
Integrated power control for easy on/off operation.
Parameters
|
Laser power |
1000w/1500w/2000w/3000w |
|
Welding materials |
Metal (welding thickness is different for different materials) |
|
Maximum Melting Width
|
5mm |
|
Maximum Melting Depth |
10mm |
|
Laser wavelength |
1064nm |
|
Output Power |
10-100% |
|
welding track |
Straight/circular/irregular welding |
|
cooling method |
water cooling |
|
Spot size |
0.1-5mm |
|
laser source |
JPT/max/RAYCUS/RECI |
|
Effective itinerary |
450*300*400*100(X*Y*Z*R)can be customized |
|
welding system |
Automatic welding system (programmable) |
|
Software Support Format |
DWG/DFX/BMP/PCX/PLT |
Application Scenarios
ZCLASER
Shandong Zhancheng Intelligent Manufacturing Co., Ltd is a professional research, development, production andsales of laser cutting marking equipment company, can be tailored for differententerprises of various non-standard laser equipment. Companies and many large well-known enterprises at home and abroad to establish long- term stability ofhe interactive relations of cooperation, forthe majority of users with the perfect laser processing solutions and thecorresponding supporting facilities, widelyused in auto parts, instrument, measuring tool cutting tool, electronic communications, aerospace, petrochemical, military products, medicine, food,packaging, and various metal and non-metal material marking.and is a leading enterprise in the laser industry.
